J35
NEWIND
Product Description
| Smart Mode: Customers only need to rotate left and right to control the duration of the fragrance to control the intensity of the fragrance, and no other settings are required. (Machine default, Beijing time has been set, scenting time 7:00-23:59, scenting once every 15 minutes) Custom mode: Press twice in succession to enter the commercial mode, and at the same time enter the [work cycle] setting |
| 1.Performance Parameters | |||
| Operating voltage | 12V/1A | Product Material | PP |
| Maximum power | 12W | Spray volume | 0.2-0.3ML/H |
| Timer off | Yes | Product Net Weight | 0.64kg |
| Essential oil capacity | 300ml | Product barcode | 6970439654232 |
| 2.Packaging Instructions | |||
| Product colour | White | LOGO | Neutral |
| Unit size | 162*72*221mm | Colour box size | 165*80*265 |
| Gross weight of product | 0.7kg | Product standard | Bare unit 、 power adapter 、 nail-free hook 、hole-punching screws 、 instructions |
| Number of boxes | 24 units | Net weight of the whole box | 18kg |
| Outer box size | 505*330*540 | ||
| 3.Instructions For Use | |||
| Operation by knob. 1. Press and hold to switch on or off. 2. Adjust the aroma concentration directly with the left or right knob. 3. Double-click the knob twice to enter the device menu. | |||
| 4.Introduction To The Working Interface | |||
| 1) The first row shows the day of the week; 2) the second row shows the power on/off status 3) the third row shows the current status of the device 4) the fourth row shows the current time. 5) The 5th row shows Bluetooth connection indication. 6) the 6th row shows the battery and fuel consumption status. | |||
| 5、Working Time Settings | |||
| Smart mode. The customer only needs to control the duration of the fragrance spray by rotating left and right, thus controlling the intensity of the spray, no other settings are required. (Machine default, Beijing time is set, fragrance time 7:00-23:59, every 15 minutes) Customised mode. Press twice in succession to enter the commercial mode and at the same time enter the [working cycle] setting ①. Set [Working Cycle Select the working period (Mon-Fri, Mon-Sun, Mon-Sat, Sat-Sun, 2-4-6) by rotating the button left and right, and confirm with a single press to enter the [Working Time Period] setting. ②. Setting [Working Time Period Select a working time period (1, 2, 3, 4) by rotating the button left and right, and press the confirmation button alone to enter the [Working Start Time - Hour] setting. ③. Setting [Work Start Time - Hour By rotating the button left and right, select the working start time - hour (0, 1 - 23), single press to confirm, enter the [Working start time - minute] setting. ④. Setting [Work start time - minutes By rotating the button left and right, select the working start time - minutes (1, 2 - 59), single press to confirm, enter the [working end time - hours] setting. ⑤. Setting [Work End Time - Hour By rotating the button left and right, select the work end time - hour (0, 1 - 23), single press to confirm, enter the [work end time - minute] setting. (6) Setting [End of work time - minutes By rotating the button left and right, select the working end time - minutes (1, 2 - 59), single press to confirm, enter the [fragrance spraying time] setting. (7) Set [Fragrance spraying time]. By rotating the button left and right, select the spray fragrance length (5, 10 - 120), single press to confirm, enter the [spray fragrance interval] setting. ⑧、Setting the [fragrance spray interval By rotating the button left and right, select the spray interval (60, 120 - 1200), single press to confirm, enter the [current time - hour] setting. ⑨、Setting [Current time - hour By rotating the button left and right, select the current time - hour (0, 1 - 23), single press to confirm, enter the [current time - minutes] setting. ⑩、Setting [Current Time - Minute Select the current time-minute (1, 2 - 59) by rotating the button left and right. Press twice in succession to save and exit Pro mode. The current time period setting is complete. | |||
| 6.Consumption Reference | |||
| 2ml/hr | |||
| 7.Product Selling Points | |||

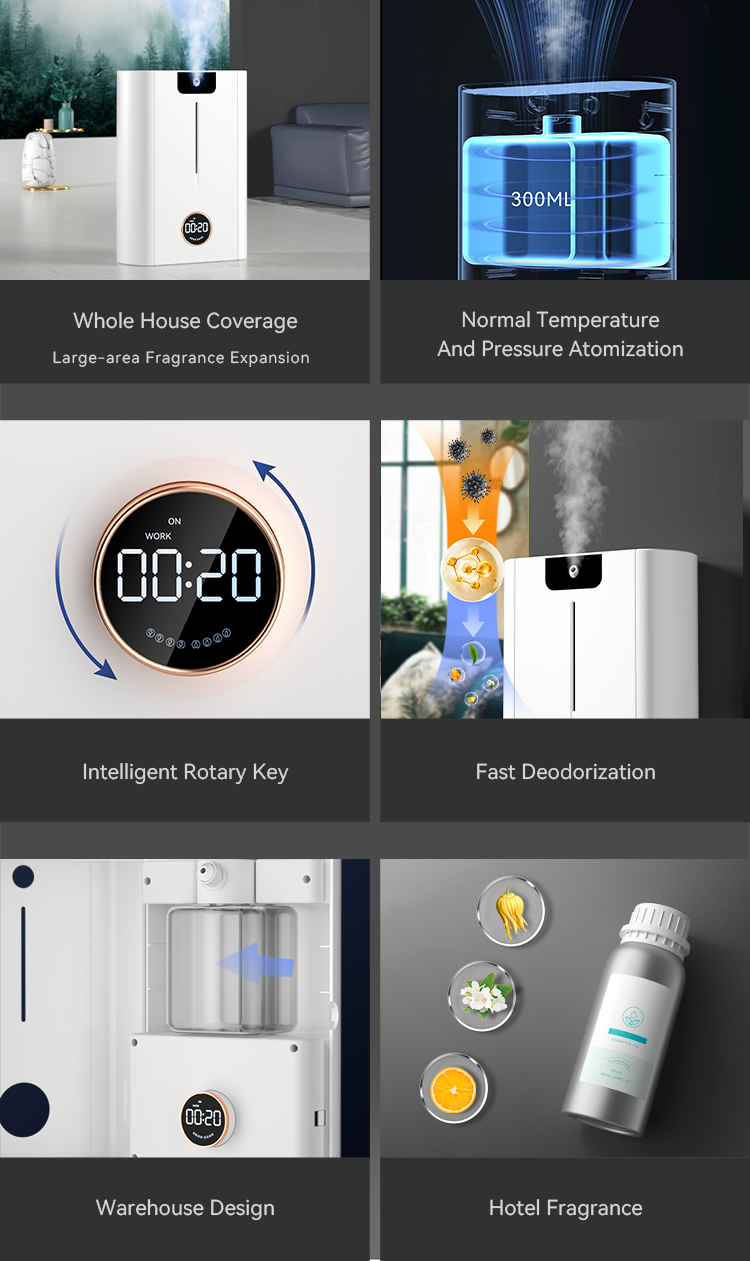

| 1、Simple and symmetrical design, pure colour scheme, it is the gospel product for OCD and value control. 2、The product is positioned at home, while taking into account the commercial customer groups. 3, the product emphasis on the use of experience, knob control, instead of the traditional type of clumsy buttons, cumbersome touch, so that the white can be used without learning, the user only need to control the left and right knob spray duration, so as to control the concentration of fragrance, no other settings. 4. Considering the different environments of commercial use, the machine supports knob setting, which greatly simplifies the setting steps of previous generations of products and truly realises the meaning of one-touch setting. 5, the machine also built-in noise reduction function, screen display function, oil detection function, power detection function (charging models). 6、The product has been successively released plug-in models, rechargeable models, Bluetooth models. Make it more convenient to use. | |||
